Description

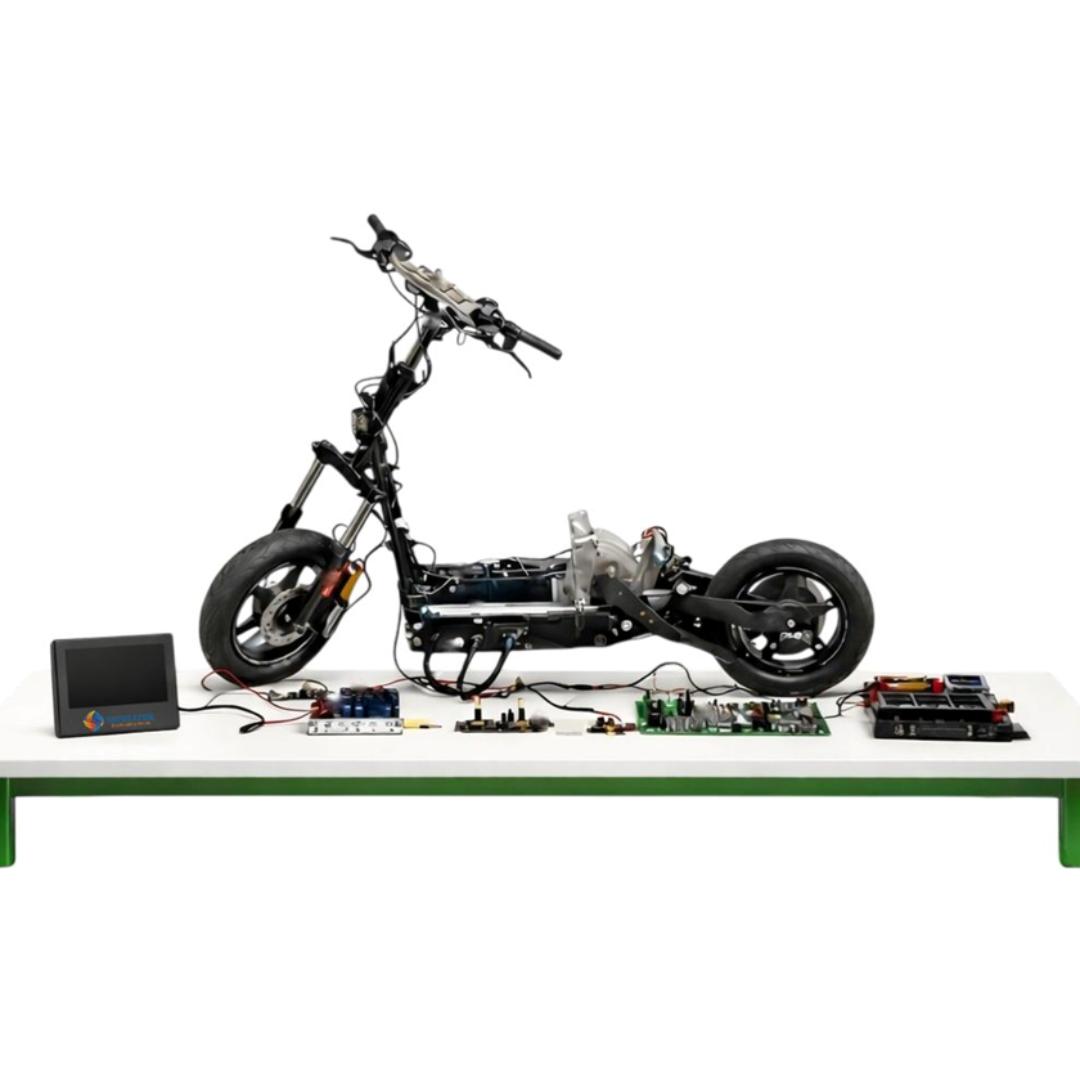

IES-EV-352

KEY TECHNICAL SPECIFICATIONS

Traction MotorHigh-efficiency BLDC / PMSM traction motor designed for electric two-wheeler drivetrain operation with configurable voltage levels.

Motor ControllerProgrammable EV motor controller supporting throttle control, regenerative braking and real-time motor control functions.

Battery & Energy Storage SystemEV-grade lithium battery pack with integrated battery management system for monitoring voltage, current and temperature parameters.

Transmission & Drive SystemDirect coupling, chain drive or belt drive arrangement for demonstration of drivetrain power transmission.

Mechanical Frame StructureOpen mild-steel powder-coated frame with accessible mounting for motor, controller and battery components.

Instrumentation & SensorsIntegrated sensors and digital instrumentation for measurement of voltage, current, torque, speed and temperature.

Display & Monitoring InterfacePC-based monitoring interface with CAN communication software along with digital meters mounted on the frame.

Data Acquisition SystemCAN-based data acquisition system enabling real-time monitoring, logging and diagnostic analysis.

Safety & Protection SystemElectrical protection including MCB, fuse protection, overload protection and emergency stop switch.

RANGE OF EXPERIMENTS

Study of electric vehicle propulsion system and energy flow

Analysis of motor speed, torque and performance characteristics

Investigation of regenerative braking operation

Battery performance monitoring and charge behaviour analysis

Controller throttle response and speed control testing

Real-time monitoring of electrical and mechanical parameters

Sensor signal measurement and calibration experiments

EV drivetrain diagnostics and troubleshooting exercises

FEATURES

Open learning format with clearly visible EV components

Real EV drivetrain components for practical training

CAN-based monitoring and diagnostic capability

Integrated sensors and digital instrumentation

Regenerative braking functionality for energy recovery study

Accessible wiring connections for testing and measurement

Modular structure for easy maintenance and experimentation

Built-in safety protection for laboratory operation
