6 Axis Articulated Training Robot Kit (Articulated Robot Cell)

IP Associates > Products > 6 Axis Articulated Training Robot Kit (Articulated Robot Cell)
6 Axis Articulated Training Robot Kit (Articulated Robot Cell)

6 Axis Articulated Training Robot Kit (Articulated Robot Cell)

6 Axis Articulated Training Robot Kit

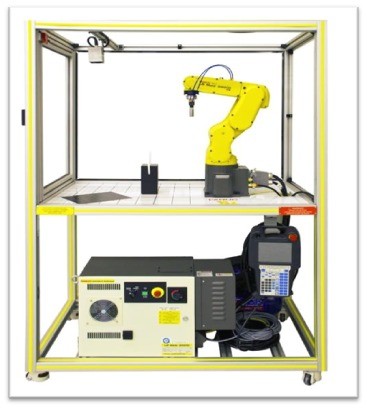

Robotics Learning System teaches articulated arm servo robotics and how it’s applied in industrial tasks like assembly, material handling, and inspection. This introductory robotics training system includes a 6 axis Articulated training robot kit with a 360-degree work envelope, mobile workstation, industrial controller, and state-of-the-art teach pendant. Using these real-world components, learners will be able to practice ON executable commands using programming language.

Categories: , Tag:

Description

6 Axis Articulated Training Robot Kit (Articulated Robot Cell) – Specifications

1

Type

Articulated Type

2

Controlled axis

6-axes(J1,J2,J3,J4,J5,J6)

3

Reach

550mm

4

Installation

Floor, Upside-down, (Angle mount)

5

Motion range

(Maximum Speed)

J1 Axis Rotation

J2 Axis Rotation

J3 Axis Rotation

J4 Axis Rotation

J5 Axis Rotation

J6 Axis Rotation

6

Max. load capacity Wrist

4Kg

7

Allowable Load moment at wrist

J4 Axis

J5 Axis

J6 Axis

Allowable Load inertia at wrist

J4 Axis

J5 Axis

J6 Axis

9

Repeatability

+/- 0.05mm

10

Mass

21 Kg Minimum

12

Installation environment

Ambient temperature: 0 – 45°C

Ambient humidity: Normally 75%RH or less. No dew, nor frost allowed.

Vobration Acceleration: 4.9 m/s2 (0.5G or less)
