Description

Electrial Specifications

Input Voltage : 230V AC +/- 10%50Hz

Soldering : 24V AC, 60W

De-Soldering : 24V AC, 65W

SMT Tweezer : 24V AC 2 x 25 W

SMD Hot air soldering & Desoldering Gun : 110V AC 200W

Vacuum Pump cylinder : Powerful DC pump with double

Air flow for SMD hot air gun : 3 L/m to 24 L/m

Temperature range for PTH Section : 180deg C to 480deg C

For SMD Section : 200deg C to 550deg C

Control Accuracy : +10 C for hot air tools

+5 C for contact tools

Tip leakage current : <2 ma.

Tip to ground resistance : <2 ohms

Tip to ground leakage voltage : <2 mv

Digital multi meter : 31/2 Digit Auto Range

Thermal wire stipper : 1.5 V AC, 10W each blade 1.5×2

Machine Center : 18V DC – 24V DC

DC Power Supply : 1.5V to 15V DC, 1 amp Accuracy + 1%

Electronic Screw Driver : 12V DC to 30V DC

Torque Range : 2Kg F-Cm to 7 Kg F-Cm

Pumps : Individuals

Size of the unit : 260W x 275D x 250H (mm)

Weight of the unit : 8Kgs (approx.)

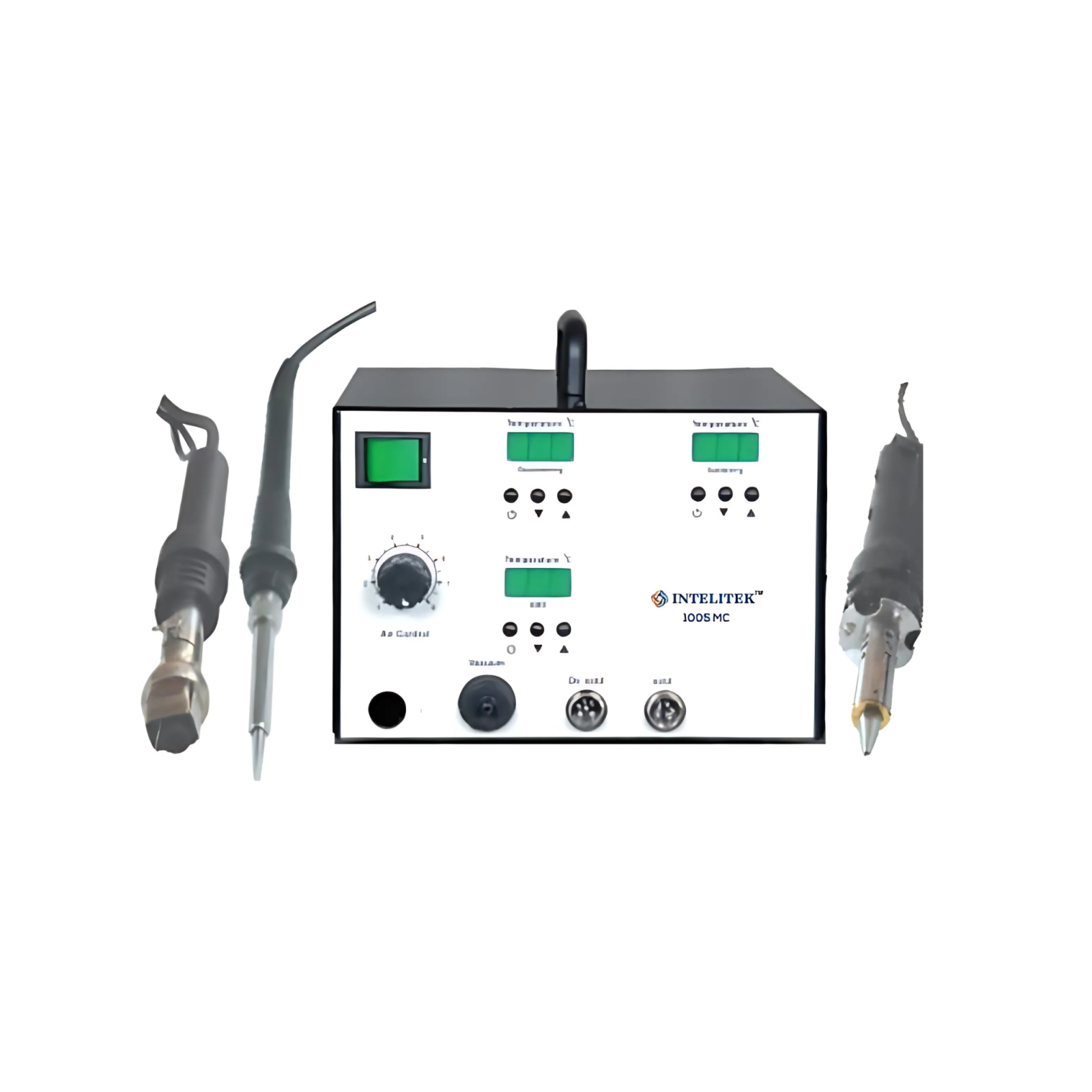

Product Features

Soldering & De Soldering Station

Input Voltage : 190 v to 270 v

Out put Voltage : 24v AC

Soldering Wattage : 60 Watts

De soldering Wattage : 70 Watts

Temp Range : 180 – 480 c

Temp accuracy : +/-1deg C

Tip to ground potential : under 2 M V

Tip to ground leakage : under 2

Vaccum : 600 mm/Hg

High Quality 24v DC Pump with 400 RPM

SMD Hot Air

Input Voltage : 220 v AC

Power Consumption : 300 Watts

Air Pump : Diaphragm type

Capacity : 24 L/min

Hot air temperature : 200 to 550

Temp accuracy : +/-1deg  C

Motor will switch off automatically after reaching 100 c when the element is switched off.
