Description

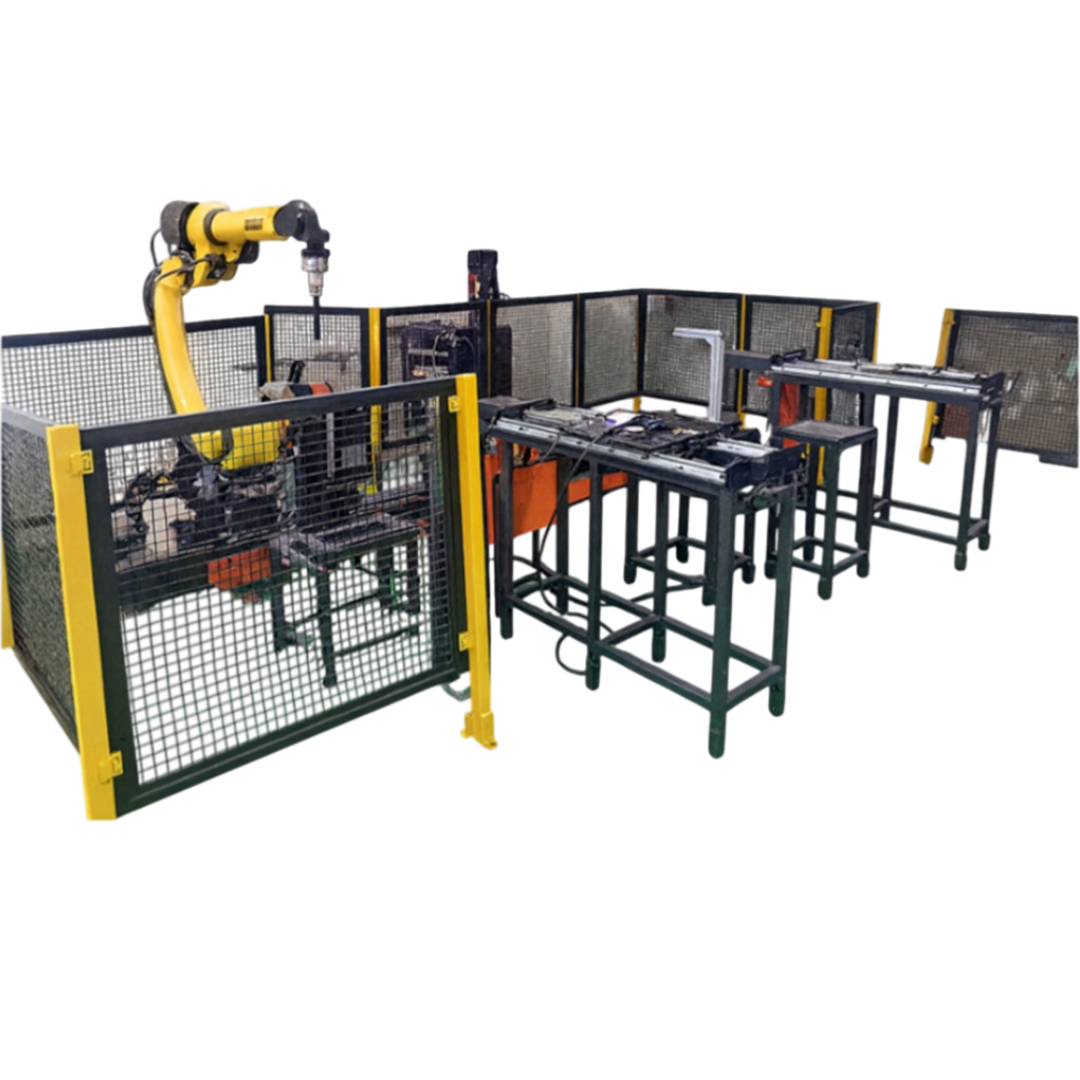

IES-RA-605

KEY TECHNICAL SPECIFICATIONS

Industrial Robotic Welding SystemSix-axis articulated industrial robot designed for automated arc welding applications.

Robot Motion Control PlatformIndustrial robot controller with teach pendant used for programming, motion control and welding operation management.

Robotic Welding Torch AssemblyRobot-mounted MIG welding torch designed for automated welding operations.

MIG Welding Power SourceIndustrial MIG welding machine with integrated wire feeder for robotic welding processes.

Welding Positioner SystemWorkpiece positioning system enabling welding of various joint configurations.

Robot Mounting StructureHeavy-duty pedestal structure for stable robot installation and safe welding operations.

Welding Workstation TableIndustrial welding table designed for mounting fixtures and supporting welding experiments.

Welding Fixtures & Work HoldingFixture assemblies for securing components during robotic welding operations.

Torch Cleaning SystemAutomated torch cleaning station to maintain welding torch performance and reliability.

Safety Enclosure SystemIndustrial safety fencing with operator access door for safe robotic welding cell operation.

Robotic Programming & Simulation SoftwareSoftware platform supporting robotic programming, path generation and welding simulation.

Industrial Communication InterfaceEthernet-based communication for integration with industrial automation systems.

RANGE OF EXPERIMENTS

Robotic welding path programming

MIG welding automation processes

Welding joint preparation and robotic welding techniques

Tool Center Point (TCP) calibration and robot programming

Robotic motion control for welding operations

Industrial robotic welding cell operation and process optimization

FEATURES

Six-axis industrial robot for automated welding applications

Integrated MIG welding power source with wire feeder system

Robotic welding torch mounted on robot arm

Welding positioner for multiple joint configurations

Industrial robot controller with teach pendant programming

Welding fixtures and workstation table for training operations

Safety enclosure for secure laboratory and training operation

Suitable for robotic welding and industrial automation training
