IES-EV-356

KEY TECHNICAL SPECIFICATIONS

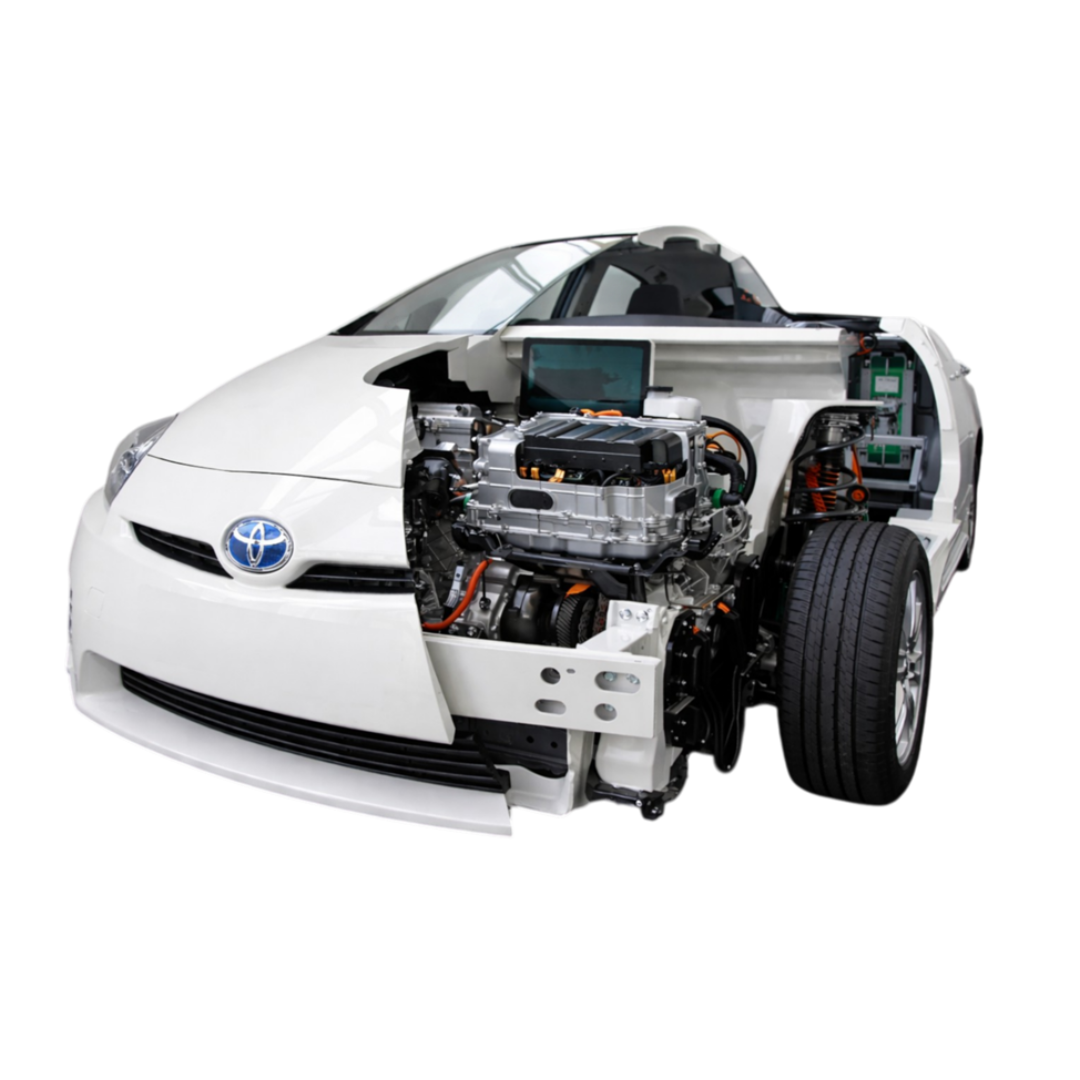

Hybrid Engine Training ModelCut-section hybrid petrol engine demonstration platform designed for educational and laboratory use.

Internal Combustion Engine ModuleMulti-cylinder petrol engine model with sectioned components for visualization of internal mechanisms.

Valve Train & Fuel System RepresentationDemonstration of valve mechanism and fuel injection system for understanding engine operation.

Hybrid Motor & Generator UnitElectric motor/generator module illustrating hybrid power assistance and energy sharing principles.

Transmission & Drivetrain SystemBelt or CVT transmission arrangement with exposed gear and differential components for studying mechanical power transfer.

Cut-Section ConstructionMajor engine components sectioned and color-coded to clearly display internal structure and working mechanisms.

Operation ModeManual demonstration mode allowing safe observation of moving engine and drivetrain components.

Mechanical Mounting StructureRigid mild-steel or aluminium frame mounted on wheels/castors for mobility and stable classroom installation.

Documentation & Training SupportInstruction manual, component identification chart and training reference materials.

RANGE OF EXPERIMENTS

Demonstration of hybrid power flow between engine and motor

Study of interaction between internal combustion engine and electric motor

Observation of transmission and drivetrain motion

Study of valve train operation and fuel injection mechanism

Demonstration of hybrid regenerative energy concept

Identification of major hybrid vehicle powertrain components

FEATURES

Hybrid petrol engine cut-section demonstration model

Color-coded internal components for easy understanding

Visible motor and drivetrain mechanisms for training

Mobile frame-mounted structure for laboratory use

Suitable for classroom teaching and technical workshops

Designed for hybrid vehicle technology education and demonstration
